LYNX

Free-spin Speed 125km/h

Motor Power Rated power 3200W, peak power 8000W

Battery Samsung INR21700-50E, 151.2V 2700wh

Operating Temperature -10℃～80℃

Max Load 120kg

Charger 151.2V,5A

Charge Time 4h(5A), 2h(10A)

Color Black

Dimension 588mm*203mm*725mm

Net weight 40kg

Suspension Mid-mounted normal suspension, preload adjustable, travel range 90mm

Pedal 120mm*300mm, magnesium alloy material

Control Board Double layer control boards,aluminum plat,36pcs mosfets, support max 840A current

Motor Magnesium alloy motor rim, thicker and wilder motor cover

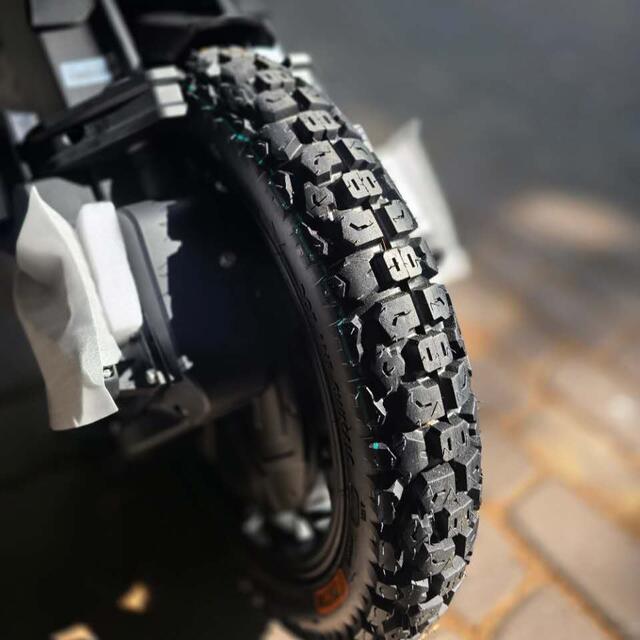

Tire size 2.75-14

Trolley handle Build-in trolley handle

Display Show speed, voltage, mileage, mode, battery status etc

Charge Port Dual charge ports support max 15A

Headlight 2500lm 20W double lamp beads

Taillight Turning, braking warning light

Fault self-inspection High temperature alarm of left and right battery pack, left and right battery pack over voltage alarm, left and right battery pack discharge alarm, charging current exceeding

Angle Protection Front and back tilt to 68, the left and right tilt can be set to 35 ~70 through display

Riding Model Riding hardness value could be set from 0%～100% through display

Power Tilt-back Power tilt-back value could be set from 30%～200% through display

Speed Tilt-back Speed tilt-back value could be set from 12kph～200kph through display

Speed Alarm Speed alarm value could be set from 12kph～200kph through display

Button Volume Button volume value could be set from 0～100 through display

Low Battery Mode Could be switch on/off through display

High Speed Mode Could be switch on/off through display

Smart BMS Inspecting each series of cells,6 zone of temperature inspection, displaying voltage,ect

Low Voltage Protection Alarm at 117V, tilt back at 113.4V.Alarm at 108V,tilt back at104.4V(low voltage mode)

Temperature Alarm Alarm at 85℃ 9upper control board),Alarm at 105℃ (down board)

Hall Error Fixment Algorithm Inspect Hall error and fix it with algorithm to make wheel continue balancing

Smart Field Weakening to Speed up Increase speed safety margin through software algorithm

Motor Anti Blocking Rotation Blocking motor rotation will not demage motor or controller
